Suhr Buffer

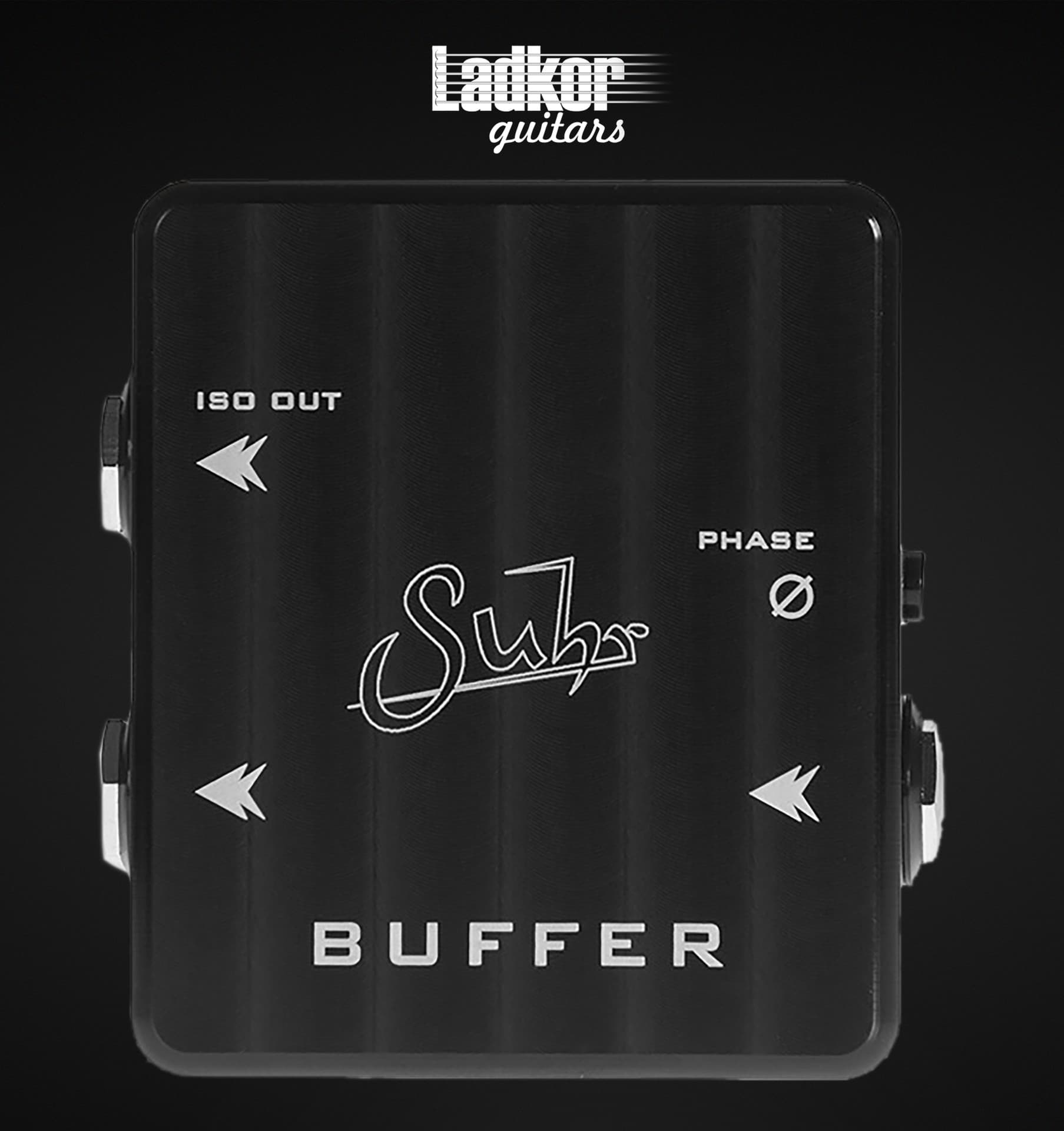

Suhr Buffer The Suhr Buffer is a transparent signal buffer/line driver which is an essential tool designed to preserve your instrument’s tone. Tone loss occurs as a result of signal degradation, commonly caused by long cable run, or the use of multiple instrument cables – such as you would find on a pedal board. To solve this, the Suhr Buffer employs unity buffering to reverse the effects of capacitance without affecting your instruments tone or output level. Operation: DC INLET: Use a compatible 9-18Vdc with a center negative power supply. INPUT: Instrument Input, use this jack to connect to your instrument. OUTPUT: Primary output, use this jack to connect to an amplifier or effect device. ISO OUTPUT (transformer isolated): Secondary output, use this to split your instrument’s signal to an additional amplifier or sound source. PHASE SWITCH (ø): The Phase Switch reverses the polarity of the Buffer’s ISO Output by 180º. Activate this switch to keep both output sources in phase. OUT: Normal (non-reversed) IN: Signals phase reversed by 180º
