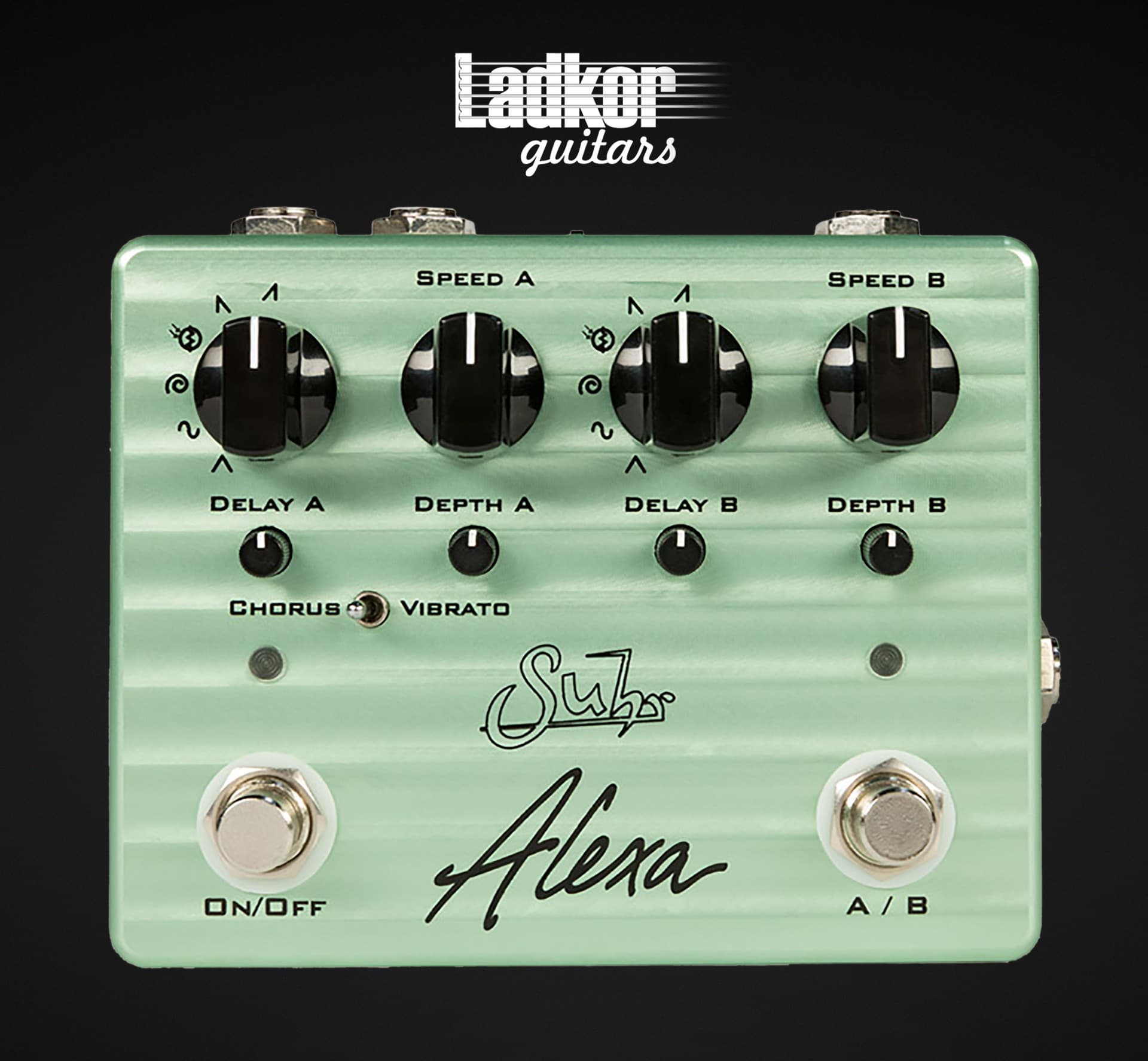

Suhr Alexa

Suhr Alexa Alexa is a Multi-Wave Dual Channel Analog Chorus/Vibrato that offers a fresh approach in delivering a wealth of warm modulation and spatial effects for your guitar, bass or keyboard. Controls: Waveform Selector: Chooses one of the 6 waveform shapes that will modulate the Vibrato / Chorus. A more indepth description of each waveform is on page 9. Speed: Adjusts the speed at which the modulation occurs. Turning the knob clockwise sets the speed to up to 10Hz. Turning the knob counter clockwise sets the speed down to 1/2Hz.. Delay: Adjusts the delay point that chorus modulates around. This ranges from 10ms to 40ms. Tip: Increasing the Delay typically gives a “wider” sound. If the chorus’s pitch wobbles too dramatically, counteract by decreasing the Depth control to keep a smoother chorus sound. Depth: The depth knob reduces (counter clockwise) or boosts (clockwise) the amount of modulation. Chorus/Vibrato: This switch is only active on channel A. This allows you to turn Channel A into a vibrato effect (pitch bending). Specifications: Input Impedance: 470K Ω Output Impedance: 470 Ω Power Connector: 9Vdc, center negative, 2.1mm x 5.5mm Operating voltage: 9Vdc Maximum Voltage: 9.3Vdc Over Voltage Protection: Yes Current Consumption: 55mA Dimensions: 4.875”(W) x 3.875”(D) x 1.375”(H) Weight: 1.05 lbs FX Link Connector: ⅛” TRS jack FX Link Max Voltage: 5Vdc Shield -> Tip: Active Pedal
